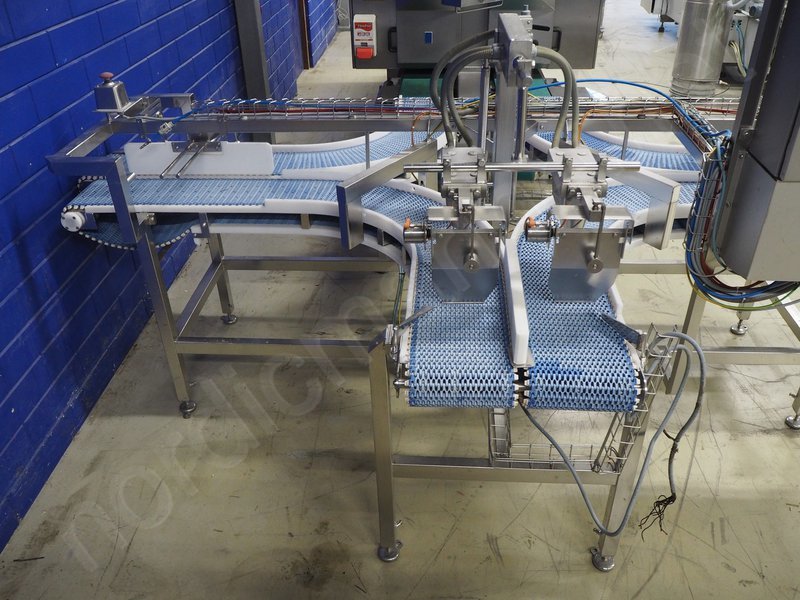

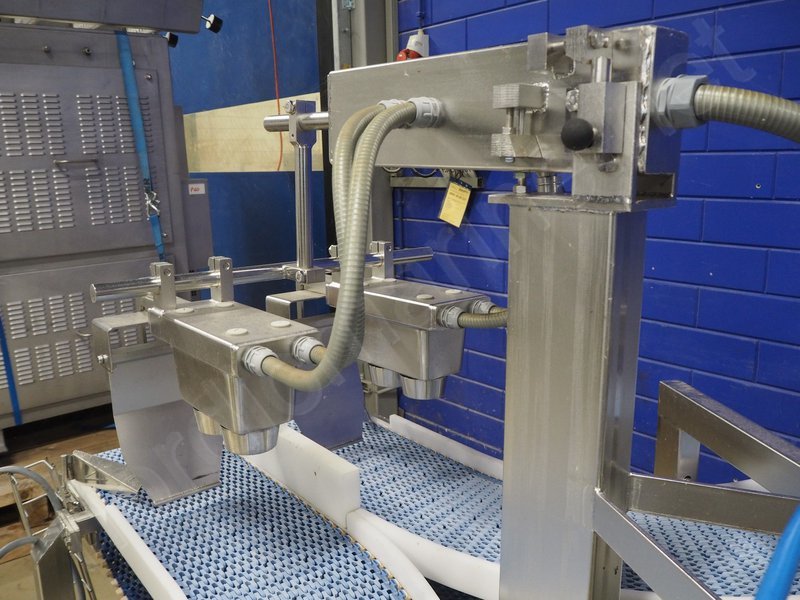

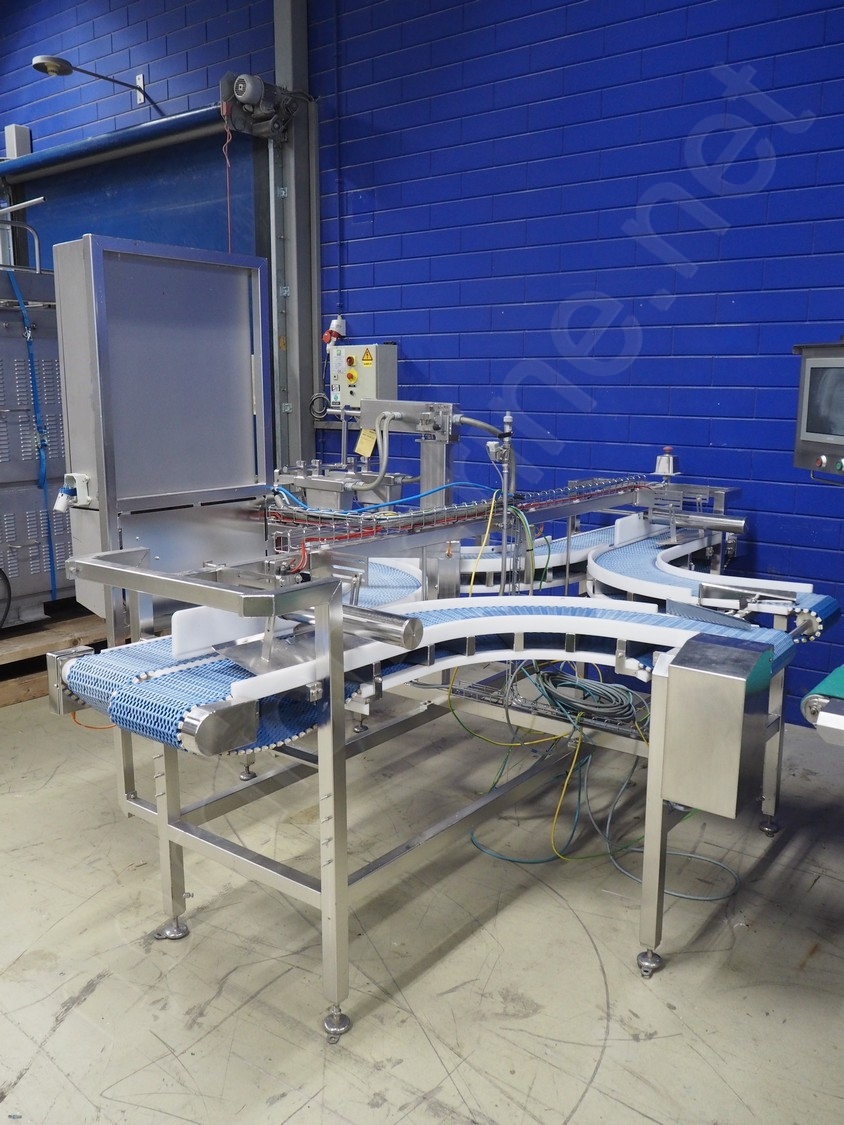

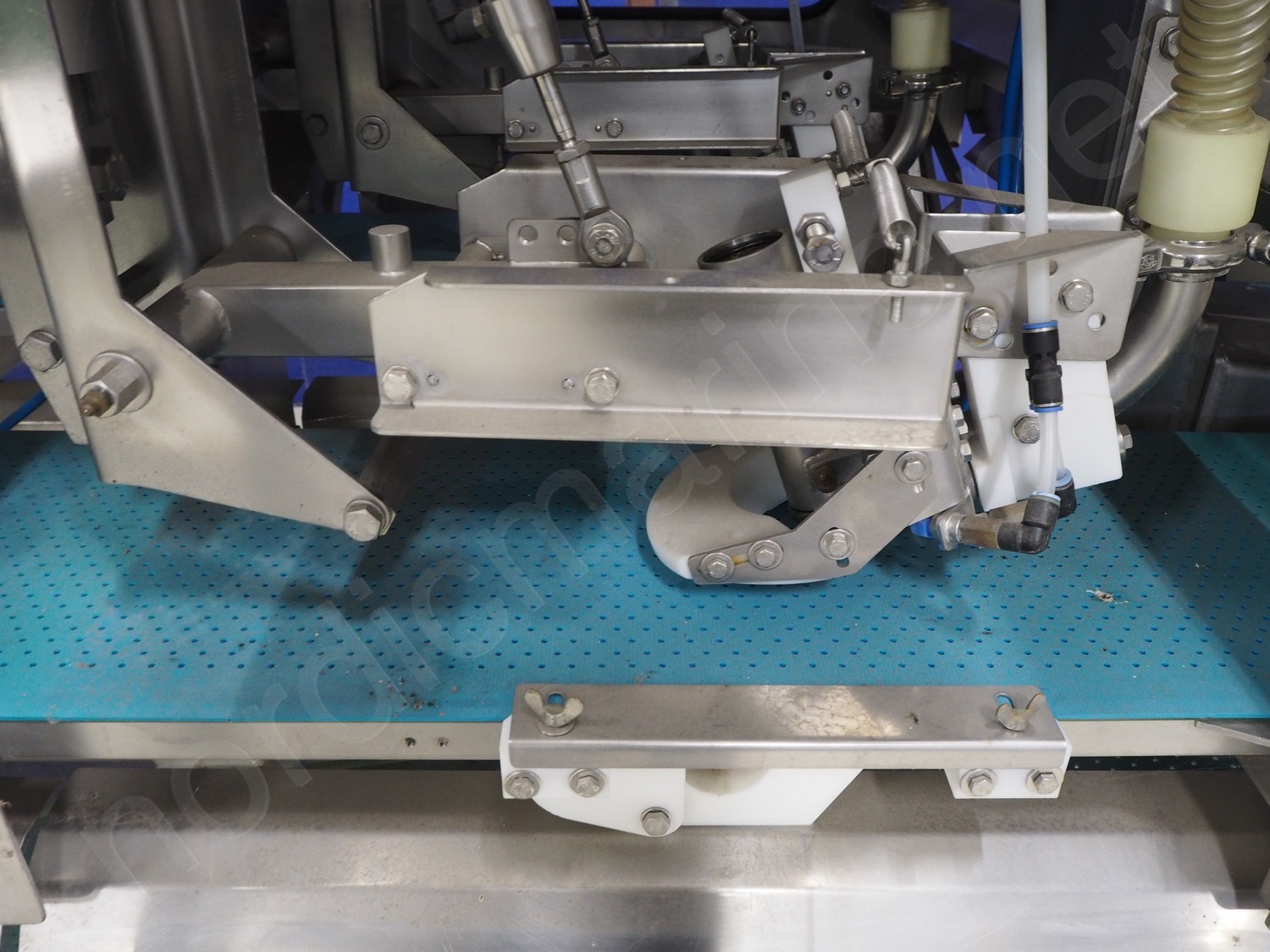

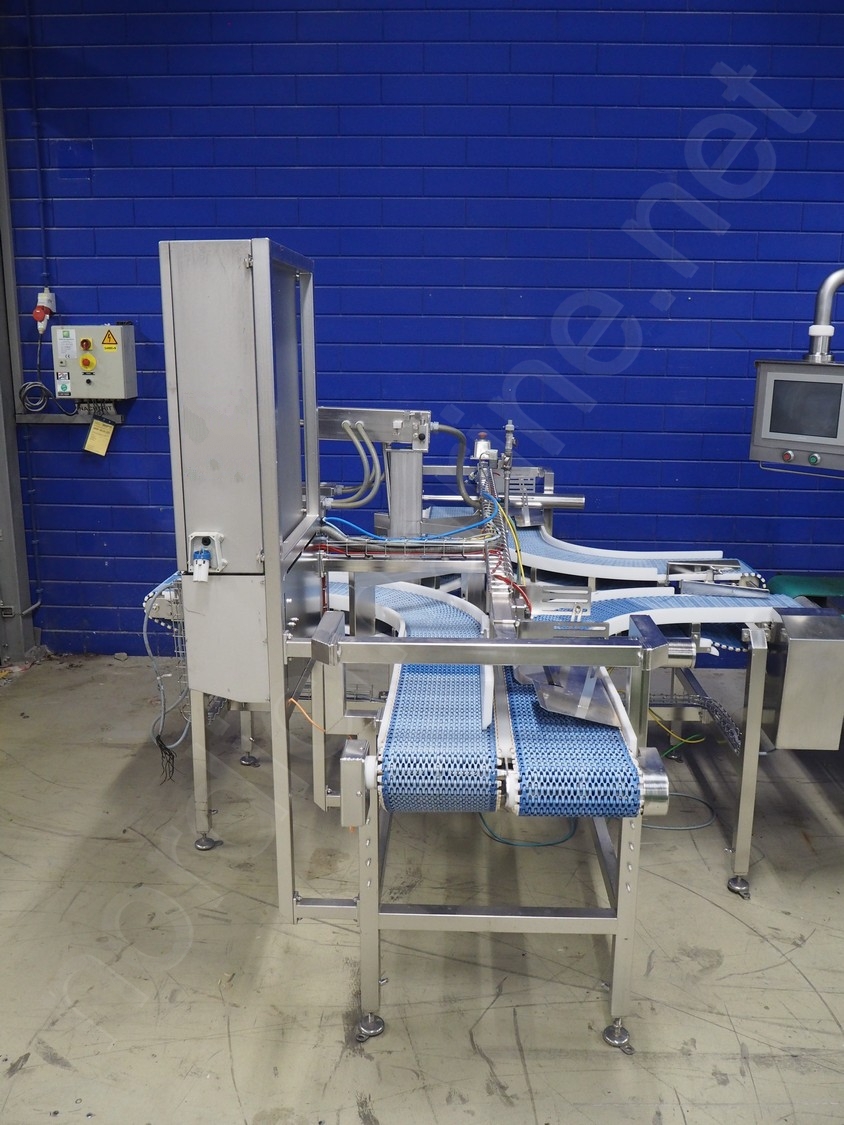

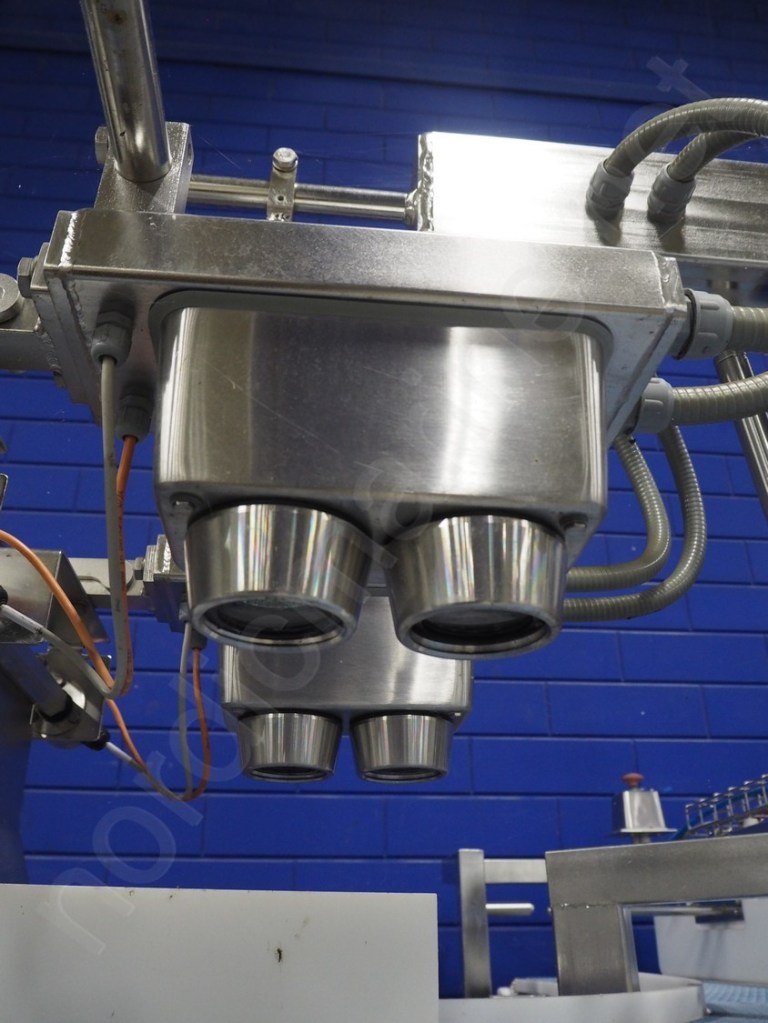

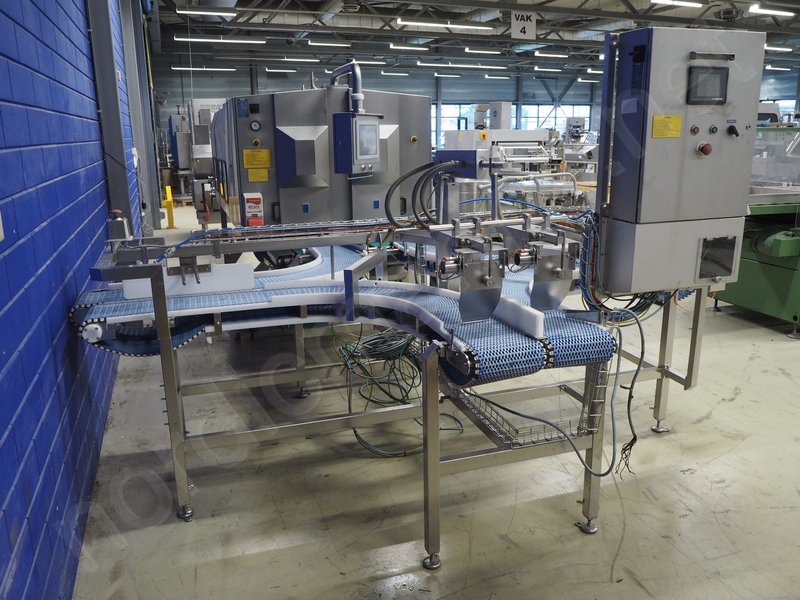

Baader 517C Filet Turner changes the “tail ahead position” of the filets coming from the BAADER 200 so that the transfer to the BAADER 988 occurs in the “tail in backward position”.
The Baader 517C Filet Turner performance: adapted to the BAADER 200 and BAADER 988
Power consumption: 0,55 kW
Dimensions
– Feeding height: 1200 – 1550 mm (infinitely variable)
– Discharge height: 1200 – 1550 mm (infinitely variable)
– Width (over belts): approx. 3450 mm
– Width (over box tables): approx. 4058
– Depth: 2300 mm

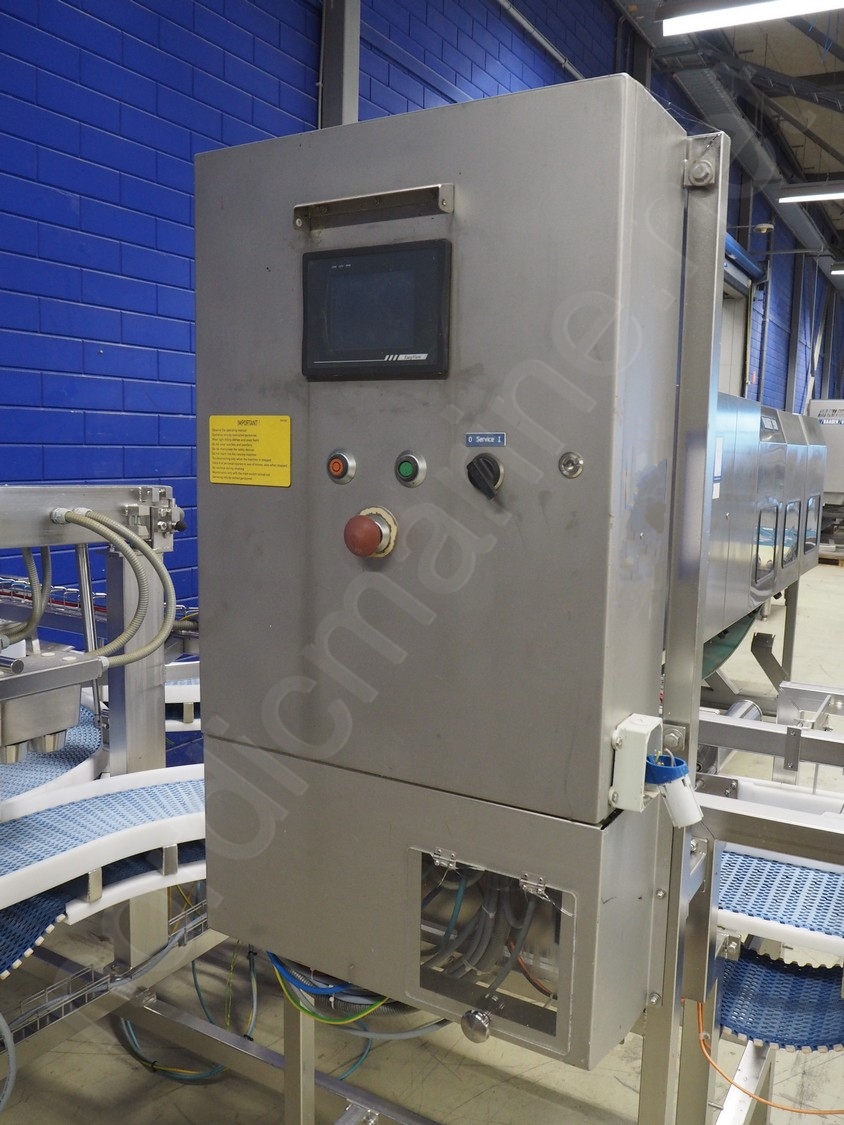

– Height: approx. 2600 mm incl. control cabinet
– Length base (extendible area): max. 600 m
Water consumption: 5 – 25 l/min
Compressed air
– compression: 6 bar
– consumption: approx. 70 – 90 l/min
Operator requirements: 0 persons
Noise measurement (evaluation according to DIN 45635)
Workplace level (LpA): 70 dB(A) – wear ear protection
