Palletizing robot Fanuc M-410iB 160. Used heavy-duty end-of-line robotic palletizing specialist for loads weighing up to 160 kg is for sale.

FANUC’s M-410 palletizing series increases throughput on palletizing and handling applications for nearly any medium to heavy palletizing payload. With a capacity up to 700 kg and a reach up to 3.1 m, the 4 or 5 axis M-410 parallel link robot series is ideal for handling medium to heavy payloads. FANUC was one of the first robot suppliers to develop a series specifically designed for palletizing and draws on years of experience and expertise in end of line automation.

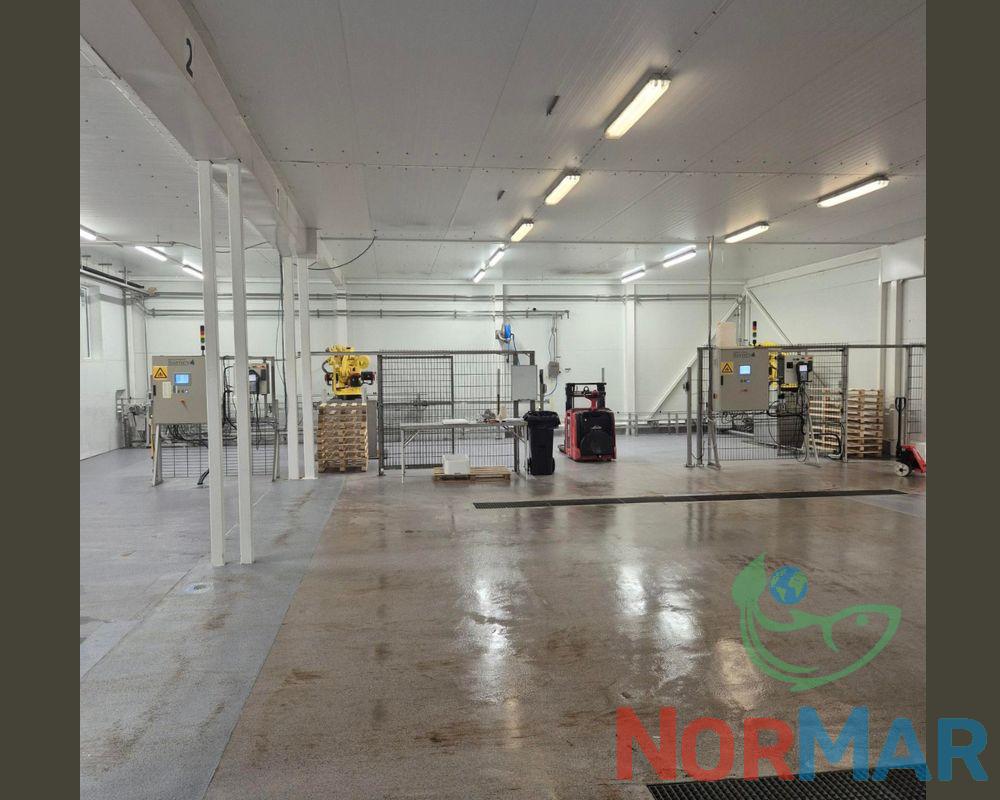

We offer a system with two positions, each featuring 10 pallet locations. It is equipped with a Samey control and sensor system, upgraded pneumatic stop/lift box sensors, and a tilting function. The equipment is covered by a scheduled maintenance program with annual service from the supplier.

Fanuc’s M-410iB series specializes in high-performance palletizing and handling with a load capacity of 160 kg and a 3 m arm reach. It offers a large work envelope. It can handle large grippers and heavy loads at maximum speed. Internal cable routing through the wrist for added safety. There is an integrated base model with controller and pedestal and without a pedestal it saves space and facilitates assembly and transport. This has a payload of 160 kg at an extension of 3149 mm, 4 axles.

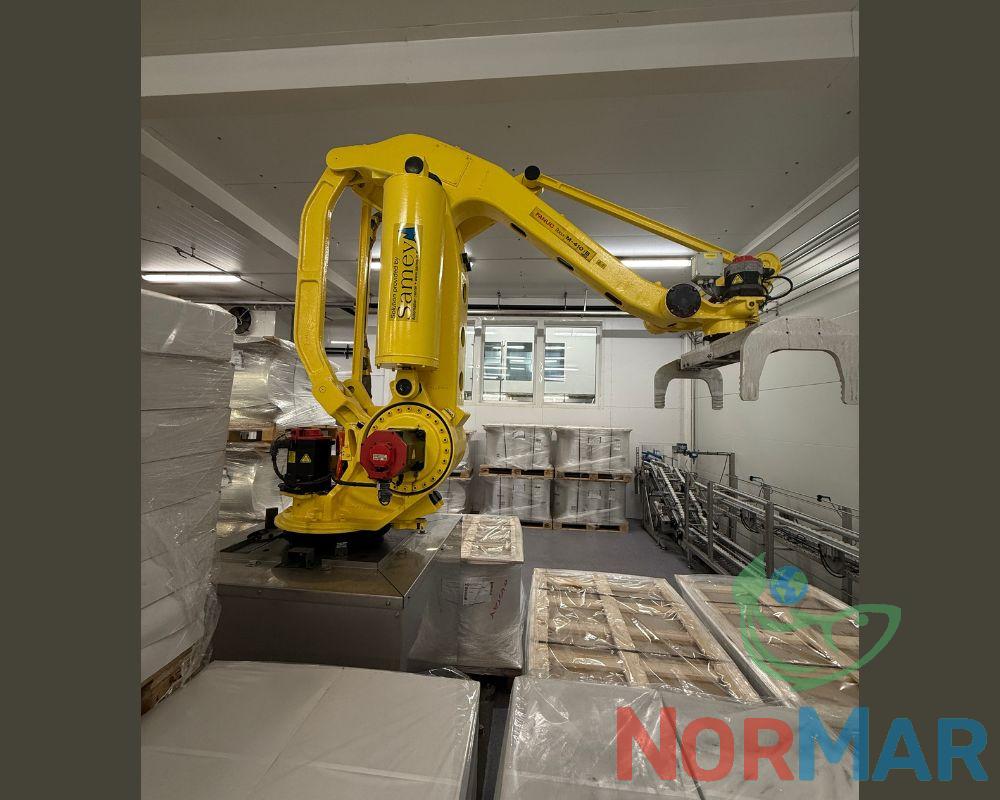

Palletizing robot Fanuc M-410iB 160 operating within an optimized workspace and with high vertical travel, and can depalletize products up to a height of almost 2.7 meters. The integrated base and controller in the pedestal (or the available non-pedestal version) save floor space and simplifies transportation and installation.

Key specifications of Fanuc M-410iB 160 palletizing robot:

  • Payload capacity: 160 kg
  • Maximum arm reach: 3,149 mm
  • Axes: 4-axis configuration
  • Maximum depalletizing height: approx. 2.7 meters

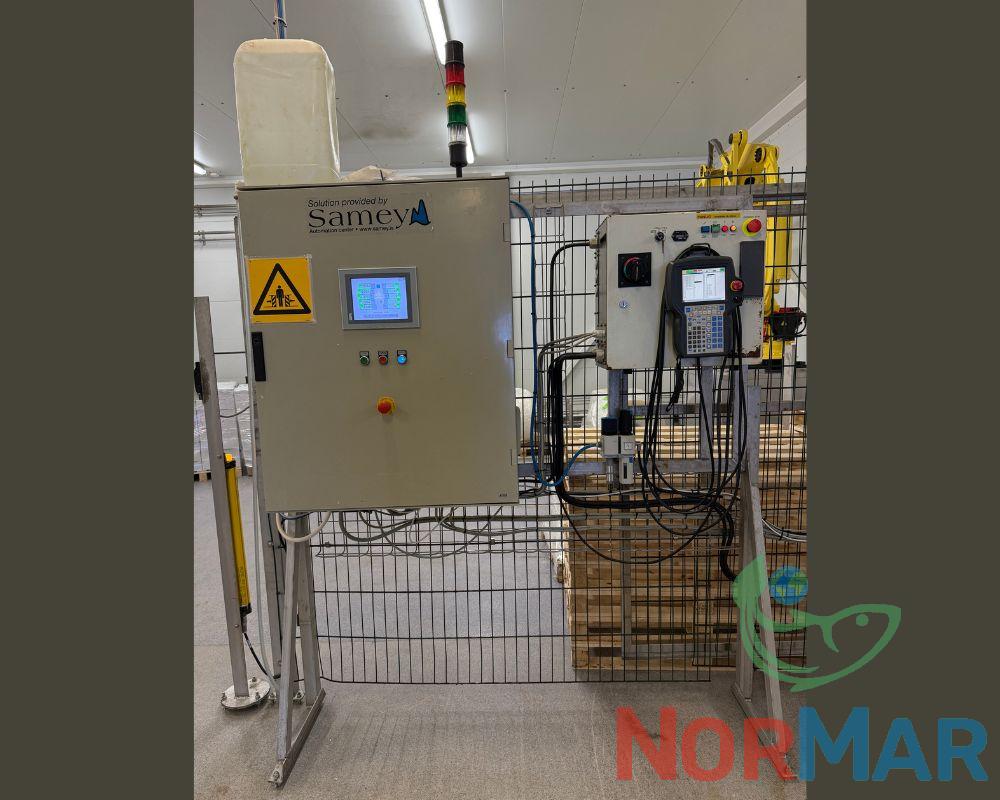

  • Control system: Samey control/sensor system
  • Upgrades: Enhanced pneumatic stop/lift box sensors and tilting function
  • Cable management: Internal cable routing through hollow wrist

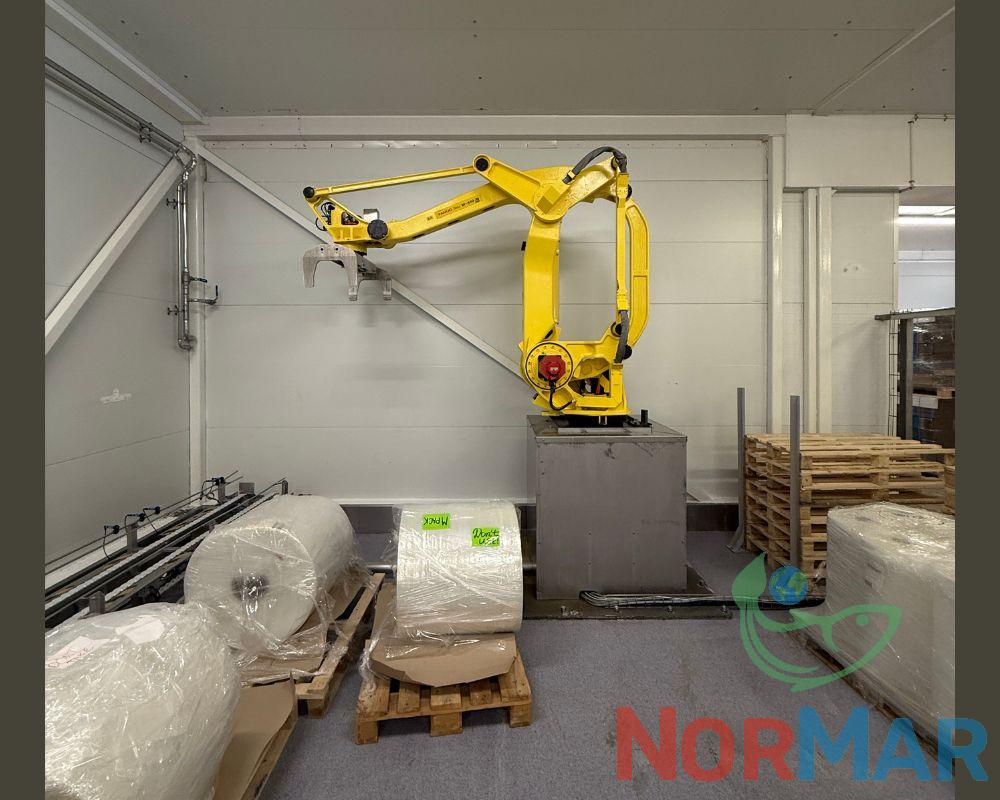

  • Design: Integrated base model with controller and pedestal (space-saving option without pedestal available)
